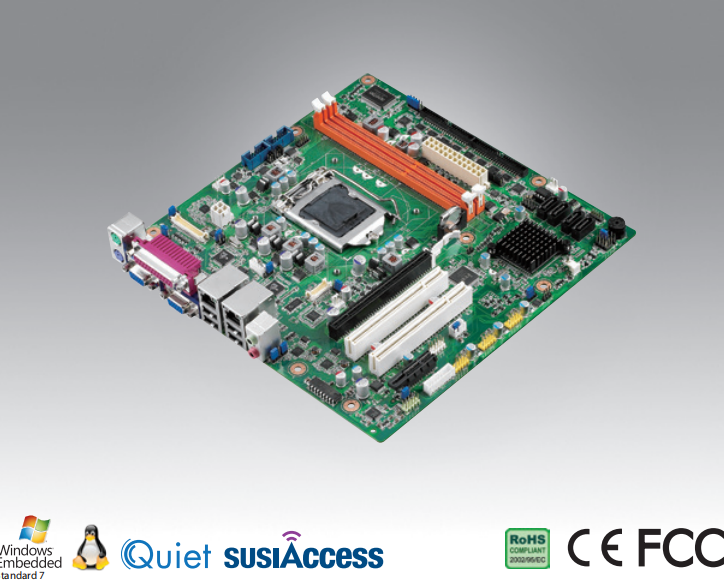

AIMB-501

Intel® Core™ i7/i5/i3 LGA1155 MicroATX with

CRT/DVI/LVDS, 10 COM, 10 USB 2.0, Dual LAN

Features

ƒ Supports Intel® Core™ i7/i5/i3 processor with H61 chipset

ƒ Two DIMM sockets support up to 16 GB DDR3 1600/1333 MHz SDRAM

ƒ Supports dual display of VGA, DVI, LVDS and two GbE LAN

ƒ Supports 10 COM, LPT, TPM 1.2 (Optional)

ƒ Supports 10 USB 2.0 or 2 USB 3.0 and 8 USB 2.0

ƒ Supports SUSIAccess, McAfee, Acronis and Embedded Software APIs
