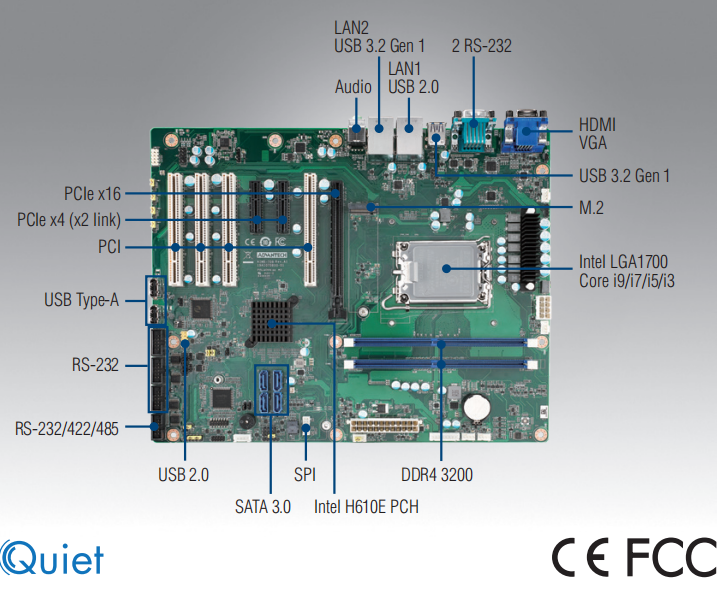

AIMB-708

LGA1700 12th Generation Intel® Core™

i9/i7/i5/i3 & Pentium®/Celeron® ATX

with HDMI/VGA, DDR4, USB 3.2, M.2,

6 COMs

Features

ƒ Intel® 12th generation Core™ i9/i7/i5/i3 & Pentium®/Celeron® processor

with H610E chipset

ƒ Two DIMM sockets up to 64GB DDR4 3200

ƒ Dual display HDMI/VGA and dual GbE LAN

ƒ M.2, SATA 3.0, USB 3.2 Gen1

ƒ 5 RS-232 and 1 RS-232/422/485 serial ports

ƒ 1 PCIe x16 (Gen 4) and 2 PCIe x4 (x2 Gen 3 link), and 4 PCI expansion slots

Note: Legacy platform is not supported.
