AIMB-705

LGA1151 6th/7th Generation Intel® Core™

i7/i5/i3/Pentium®/Celeron® ATX with DVI/

VGA, DDR4, SATA III, USB 3.0 & 6 COMs

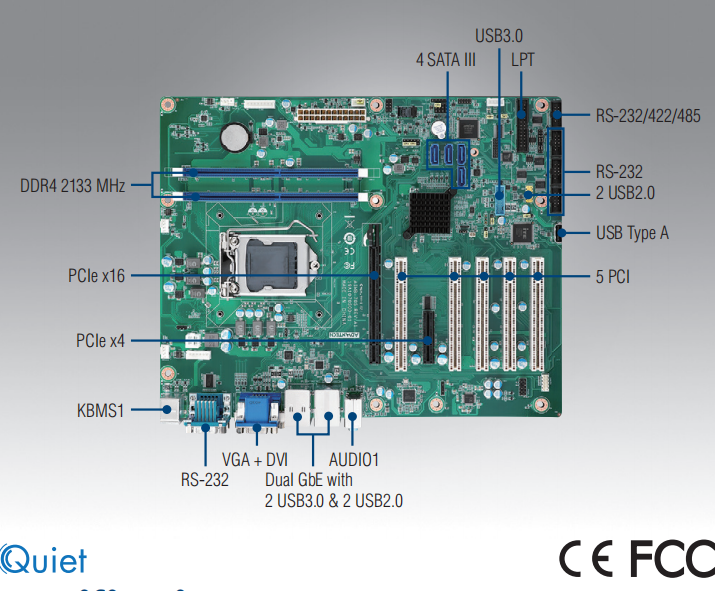

Features

ƒ Intel® 6th/7th generation Core™ i7/i5/i3/Pentium®/Celeron® processor

ƒ Dual channel (Non-ECC) DDR4 1866/2133 up to 32GB

ƒ Supports VGA and DVI display

ƒ Supports SATA3.0, USB3.0, dual GbEs

ƒ Supports 5 RS-232 and 1 RS-232/422/485 serial ports

ƒ 1 PCIe x16 (Gen3) and 1 PCIe x4 (Gen2), and 5 PCI expansion slots

Note: Intel 7th generation processors only support Windows 10 (64-bit).
