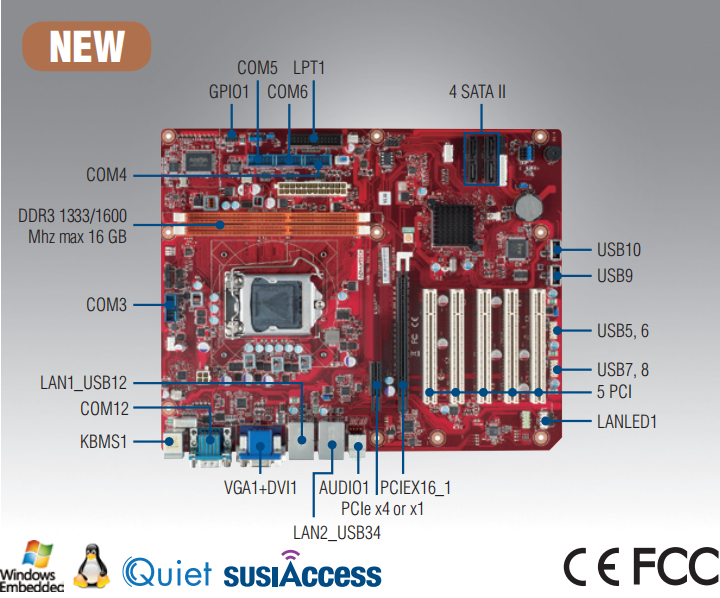

AIMB-701

LGA1155 3rd Intel® Core™ i7/i5/i3/Pentium® ATX

with DVI/VGA, Dual GbE LAN

Features

ƒ Supports Intel® Core™ i7/i5/i3/Pentium® processor with H61 chipset

ƒ Two DIMM sockets support up to 16 GB DDR3 1066/1333/1600

ƒ Supports dual display VGA/DVI-D and dual GbE LAN

ƒ Supports RS-232/422/485 with auto flow control

ƒ Supports one PCIe x16 and 5 PCI expansion slots
